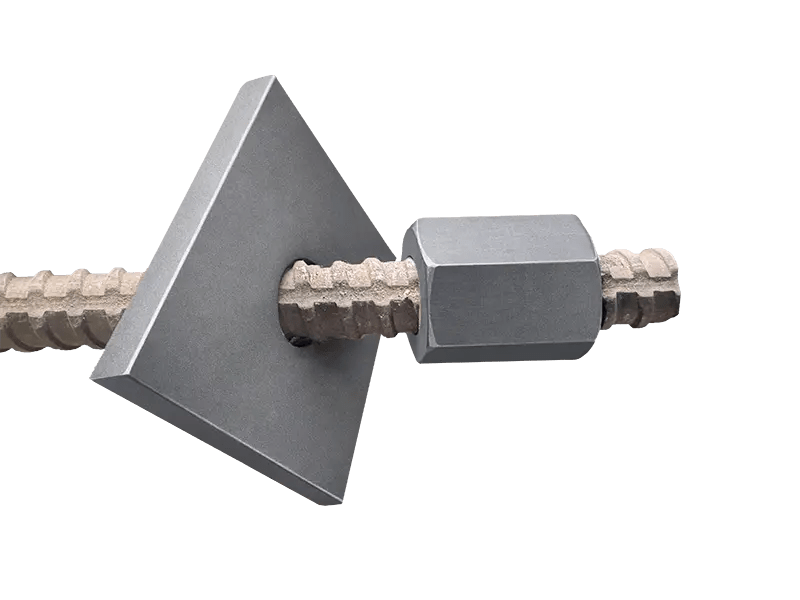

An All-thread Rebar Nut secures the bar, transfers tensile loads to the ground or structure, and applies prestress to ensure stable anchoring
1
1

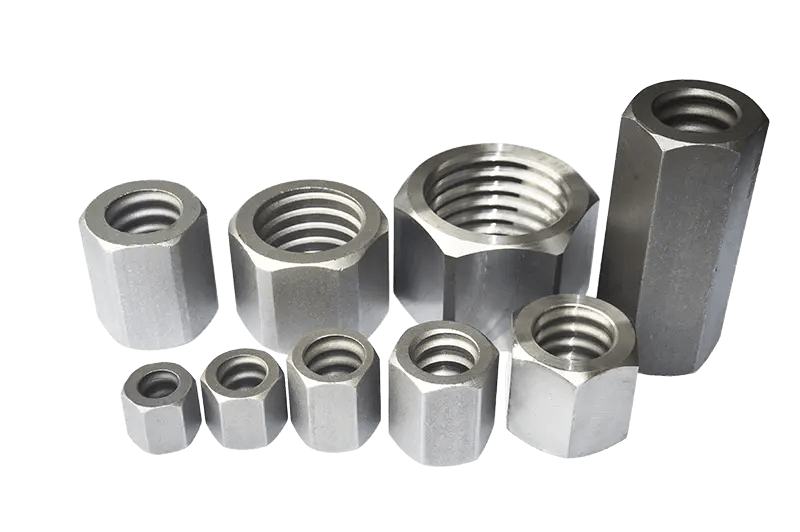

Continuous Thread Rebar Nuts
Application Areas
- Structural reinforcement – strengthening concrete columns, walls, and foundations.
- Post-tensioning systems – internal and external prestressed concrete applications.
- Ground anchoring and soil stabilization – tiebacks, anchorages, and retaining walls.
- Precast concrete connections – joining prefabricated elements like bridge segments or wall panels.
- Mechanical splicing of steel reinforcement – replacing traditional lap splices for high-strength threaded bars.

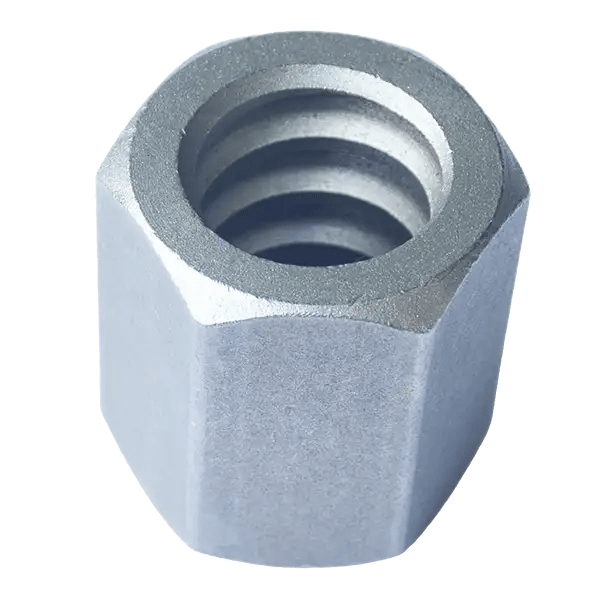

All-Thread Rebar Nut
Technical Data
| All-thread Bar Size* | Thread Pitch |
|---|---|
| Φ38 mm 1-1/2″ | 15.63 mm 0.615” |
| Φ45 mm 1-3/4″ | 18.47 mm 0.727″ |
| Φ51 mm 2″ | 20.00 mm 0.787″ |
* Only for reference. Based on the domestic market demands.
More models can be made on request.

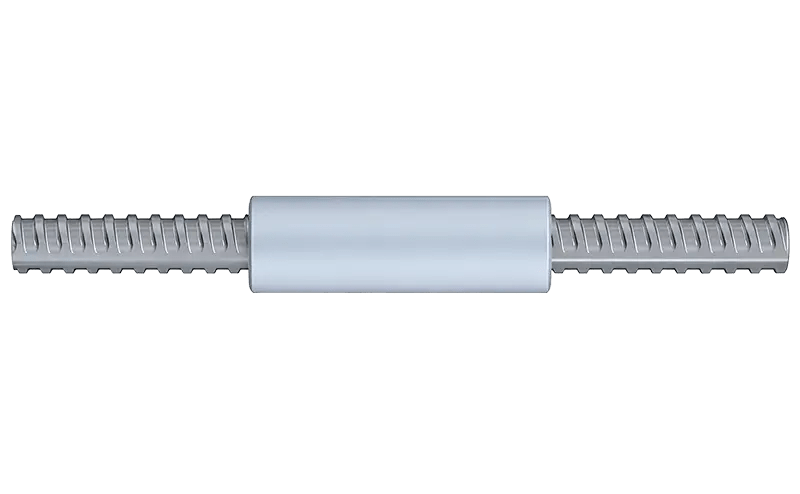

Features of Rayon Rebar Couplers:
- The coupler can be customized to connect two bars of different diameters or types.
- Centered stop pin guarantees equal screwing-in length for both bars.
- Available in both hex and round coupler designs.
- Galvanized options are available for all couplers.
Standards & Compliance
-
ISO 9001 certified manufacturing
-
ASTM / EN material standards compliance
-
Compatible with international threadbar reinforcement systems
Notes for Export
-
Technical parameters can be customized per project specifications
-
Can supply with OEM branding for international clients
-
Available in bulk and cut-to-length options
